ICU BEDS
ICU Beds are special hospital beds designed for ICUs to take care of critical patients. NET brand ICU Beds combine smart ergonomics with advanced technology and intuitive operation. ICU beds, thus, provide both safety and comfort to the patients and caregivers alike. We offer ICU Electrical Beds and Mechanical ICU Beds. The caregivers can tilt the ICU bed and can also adjust the height. Narang Medical Ltd. is India's leading manufacturer and suppliers of ICU beds. Intensive Care Units of hospitals, all over the world use our ICU beds with confidence.
You can view all models of ICU beds manufactured by us and select the most suitable bed as per your requirements. Send us your specific purchase requirement along with quantity so that we provide CIF prices.

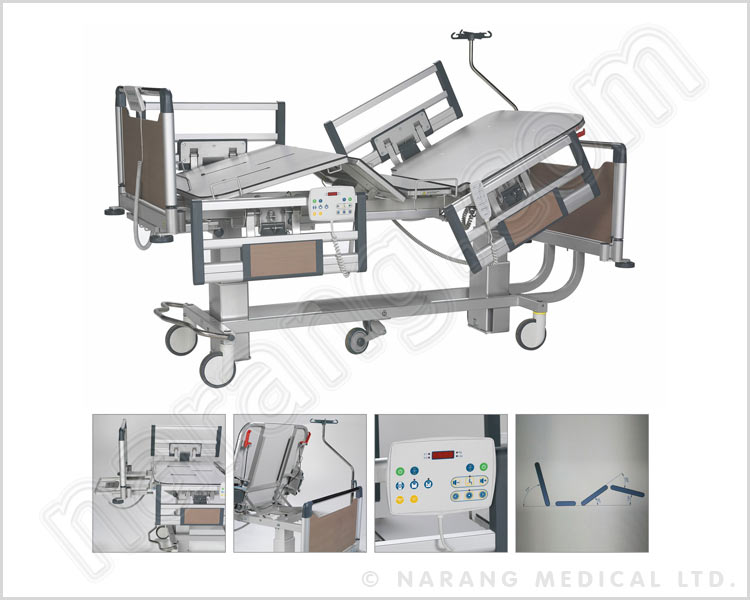

HF3100 - I.C.U Bed Electric, 5 Function Column Model - With Weighing Scale
Standard Features:
-
- Electrically operated with Remote control, Back rest (0 - 77º), Foot rest (0-35º), Height adjustment, Trendelenburg Tilting (0-18 °)and Reverse Trendelenburg (0-18°)
- Fowler and vascular positions, Manual Knee Mechanism with Three positions
- Size : L 2285mmXW975mmX H (490mm-890 mm). Bed Extension L 180 mm.
- Epoxy powder coated Framework with X-ray permeable Backrest, X-ray cassette holder .
- All function controlled with Linak (Denmark) power device.
- Control Panel - Remote control unit / Nurse control panel which can lock Patient remote control usage
- Electronic CPR-with Nurse control panel, Manual CPR -with handles on both side of back rest (for flat position of bed backrest for emergency)
- Removable fixed head/foot boards with plastic protection bumpers ( dia 90 mm) made from Aluminium and HPL material
- Foldable Side rails made from Aluminium and HPL material
- 360° movable castors with central locking (150 mm), 5th CASTOR for easy movement of bed (125 mm).
- Emergency battery backup.
- Belt hook, accessories slots, urine bag holder, Height adjustable IV pole- 2 hooks.
- Weighting scale for measuring weight of patient (0-250 Kgs) ,Tare Function , graduation 100 grams, Alarm for patient's imbalance ,activation button.

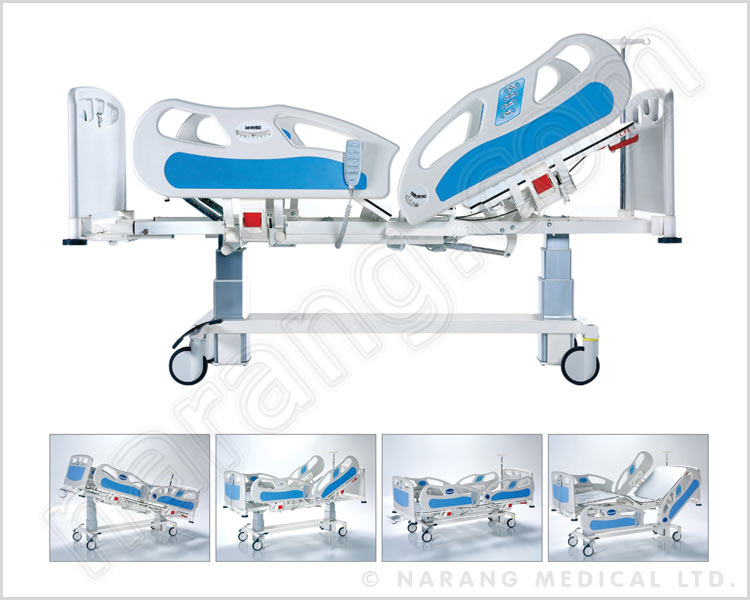

HF3300 - I.C.U Bed, Electric, 5 Function, Column Model, X-Ray Permeable Back Rest
Standard Features:
- Electrically operated with Remote control , Back rest (0 - 77°), Foot rest (0-35°), Height adjustment, Trendelenburg Tilting (0-18°) and Reverse Trendelenburg (0-18°)
- Fowler and vascular positions, Manual Knee Mechanism with Three positions
- Size : L 2160mmXW955mmX H (460mm- 860 mm). Bed Extension L-180 mm.
- Epoxy powder coated Framework with X-ray permeable Backrest, X-ray cassette holder .
- All function controlled with Linak (Denmark) power device.
- Control Panel - Remote control unit / Nurse control panel which can lock Patient remote control usage
- Electronic CPR-with Nurse control panel, Manual CPR -with handles on both side of back rest (for flat position of bed backrest for emergency)
- Removable head/foot boards with plastic protection bumpers ( dia 90 mm) made from Polypropylene material
- Foldable Side rails made from made from ABS / Polypropylene material
- 360° movable castors with central locking (150 mm), 5th CASTOR for easy movement of bed (125 mm).
- Emergency battery backup.
- Belt hook, accessories slots, urine bag holder.
- Height adjustable IV pole- 2 hooks
- Angle gauge to show Trendelenburg and reverse Trendelenburg angles
