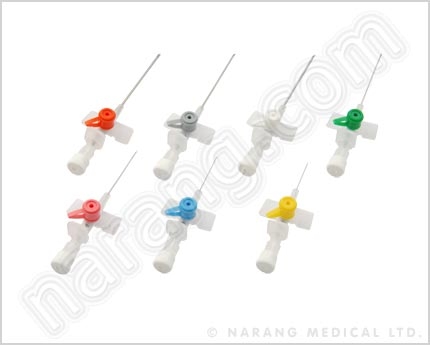

I.V. Cannula with Injection Port & Wings, Sterile
NEEDLE :
- Siliconised, bevelled, back cut ground stainless steel needle for smooth and painless venipuncture. Made of Stainless Steel AISI304, diameter and length according to ISO standard.
NEEDLE HUB :
- All I.V.Cannulae have specially designed needle hub to prevent any de-stabilisation and bending of the needle during venipuncture. Specially curved thumb guard for proper grip during insertion.
NEEDLE COVER :
- Protects the needle and catheter from contamination. Prevents accidental damage to the needle and catheter.
CATHETER :
- PTFE (Poly Tetra Fluoro Ethylene) / FEP catheter is dual tapered, bevelled tip & siliconized which offers high resistance to kinking. Minimum resistance during insertion due to its lowest coefficient of friction & improved tip design. High chemical resistance and excellent bio compatibility. Thin walled catheter allows maximum flow rate for a specific gauge of Cannula. Optimum trim distance. Choice between stripped radiopaque and transparent catheter.
FLASH BACK CHAMBER :
- Flash back chamber allows monitoring of instantaneous flash of blood after venipuncture confirming correct catheter placement. Specially designed to prevent any spillage of blood.
WINGS (DS101 & DS105) :
- Angled wings offer easy fixation and prevent slipping & rolling of cannula over the patients body.
INJECTION PORT (DS101 ONLY) :
- Provided with injection site. Which has one way retreating valve (silicon tube) to facilitate extra medication and to prevent back flow. The Injection valve is provided with specially designed cap incorporating a recessed plug with a protective skirt to effectively prevent contamination when the valve is not in use. It offers safe and convenient method of atraumatic administration of medicines. Colour coded to identify the gauge of the needle.
The product is sterile and individually packed in rigid blister sealed with peel-open type medical grade paper. (Tyvek packing available upon request). Disposable, Sterile, non-toxic and Non-Pyrogenic. Each I.V. Cannula is provided with a threaded stopper.
DS101S Features :
- Needle sharp tip is enclosed inside a plastic cage after pulling out.
- The plastic cage is designed as such that once needle sharp tip in fully enclosed inside it can not come out of the cage hence prevent Healthcare professionals from the risk of accident due to needle stick injury of injection.
- The size of Safety I.V. Cannula is similar to conventional I.V. Cannula and the technique of cannulation is similar to cannulation technic of conventional I.V. Cannula
| Conventional IV Cannula | Safety IV Cannula | I.V. CANNULAE | |||||
|---|---|---|---|---|---|---|---|
| Code | Code | Size | Colour | I.D. in mm. | O.D. in mm. | Length in mm. | Water Flow in ml./min. |
| DS101-14 | DS101S-14 | 14G | Orange | 1.7 | 2.1 | 45 | 270 |
| DS101-16 | DS101S-16 | 16G | Grey | 1.3 | 1.7 | 45 | 180 |
| DS101-17 | DS101S-17 | 17G | White | 1.1 | 1.5 | 45 | 125 |
| DS101-18 | DS101S-18 | 18G | Green | 0.9 | 1.3 | 45 | 80 |
| DS101-20 | DS101S-20 | 20G | Pink | 0.8 | 1.1 | 32 | 54 |
| DS101-22 | DS101S-22 | 22G | Blue | 0.6 | 0.9 | 25 | 33 |
| DS101-24 | DS101S-24 | 24G | Yellow | 0.5 | 0.7 | 19 | 20 |
| DS101-26 | DS101S-26 | 26G | Voilet | 0.4 | 0.6 | 19 | 19 |

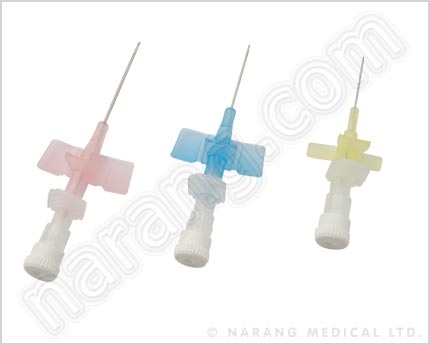

I.V. Cannula Without Injection Port, With Wings, Sterile
Product Features:
100% Safety :
- Our I.V. Cannulae can be used safely without the risk of Thrombophlebitis. It is made of Virgin P.T.F.E. (Ply Tetra Fluro Ethylene) Catheter, one of the most bio-compatible materials known to man. Virgin P.T.F.E. Catheter: As P.T.F.E. has the lowest coefficient of friction, our I.V. Cannulae reduces the chances of sticking to vascular walls. The P.T.F.E. clear catheter, designed and made double tapered with a formed tip & siliconisation, offers lower resistance during insertion, resulting in less trauma to the patient and it avoids peel back effect. The thin walled catheter has a large diameter, leading to 10% faster flow rate.
Improved Siliconised Needle Point :
- Precisely honed point enables smoother penetration for rapid closure after needle withdrawal and this also reduces fluid seepage and Postdural Puncture Headache (PDPH.). Minimises the chance of inadvertent nerve damage.
Soft And Smooth Needle Cover :
- Protects the precisely honed needle point during handling.
Needle Hub :
- The extra thin walled needle has a hub with a large crystal clear flash back chamber indicates perfect and successful venipuncture with blood entry. The holding area of the needle hub is specially designed according to thumb impression, resulting in easy insertion and firm holding pressure of thumb on the smooth surface of the hub. Fully covered needle hub stabilises the needle inside the catheter to make insertion easier and safer.
Injection Port With A Snap Fit Protection Cap :
- This allows injection of medicine during infusion. Since the non-return valve can be opened only under pressure, the valve does not open accidentally, thereby preventing contamination.
Flexible Grooved Wings :
- The wings provide an angle between the plane of the wings and catheter, resulting in easy and comfortable adjustment after catheter insertion into the vein. The grooved wings helps ease skin fixation and prominent gripping.
Unique Porous Filter :
- The needle end is covered with a unique porous filter (fitted in needle hub) resulting in a higher flow rate and quick easy confirmation of correct vascular access. Avoids blood spillage and prevents formation of air bubbles.
Threaded Stopper With Luer Lock :
- This is the stopper used to stop the blood spillage after infusion is stopped. The threads inside the stopper tightens the stopper on main body and the luer lock confirms the stoppage of blood spillage.
| Item Code | Size |
|---|---|
| DS105-16 | 16G |
| DS105-18 | 18G |
| DS105-20 | 20G |
| DS105-22 | 22G |
| DS105-24 | 24G |
| DS105-26 | 26G |
